EP Concept Metal Elevator Link
The normal linkage of elevator was changed to new type in SR. This way is easy to linkage and maintenance.
But at high speed flight,SR's linkage is weak to tight contloll,sometimes able to clash.
There is another way to stiff normal SR's linkage, use metal plate add to link. But it is not better.
So i made this metal linkage. Please try to make it!

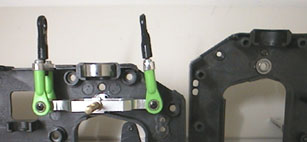

Elevator link TYPE-1 ( 6 Ball Bearing type )
Elevator servo mout was remake. Some point of flames are need to shave. Center shaft of link is tight with 1.2mm music wire ( and use locktight ).
To adjust linkage center, Use 3mm simm at center shaft of this side.
The pibot of flame side, remove normal pibot pin, and make hole wide to 6mm, put in 3mm*6mm ballbearing, and glue with qickbond.
It is good for correct contloll of swashplate. And this parts hold tight at elevator contloll, it is good for aillon contloll so.
Easy to contloll in hovering in activemove!
Elevator link TYPE-2 ( 2 Ball Bearing type )
This is easy type. Use only 2 ballbearings at center seasow. It look like HOROBO's 30class GP-heli's elevator linkage. Easy to make and enougf to EP Concept.
This parts is fit to Shyuwaizer 300's bodymount.( off set contololl lever ) If you use to normal SR, it can use general rudderholn.
This way is need only 2 ballbearings at center pibot.
Another points are same to Type1.
This plan is easy to make. Not so much moves smooth than Type1. But enough!
