Wash-out Link Ball Bearing type
@pic 1

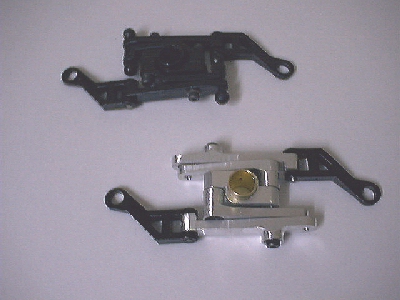

Almost parts of links are same size to blass metal type link. The pic 1, upper is normal link.
The links are mixing late like to normal wash-out link.
Materials
- Alminum channel (15mm*15mm) center hub
- Alminun channel (8mm*8mm) link arms
- Blass pipe (outer 8mm inner 7mm) center hub slider
- Blass plate (1mm*2.0mm*3.8mm) bush metal for ball bearing
- Blass plate (0.3mm*2.0mm*3.8mm)
- Ball bearing (2.0mm*5.0mm*2.3mm) seald type
@pic 2

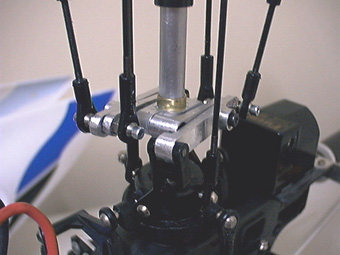

On the swash-plate.
@pic 3
@pic 4
Original working mount, for making link arms.
Using BallBearing is good for accuracy. The small helicopters are defficult to making, tyuning. But usualy man thinks to sumall helicopters. Realy, small helicopters need more accuracy.

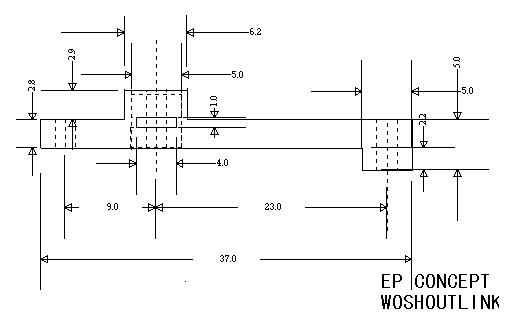

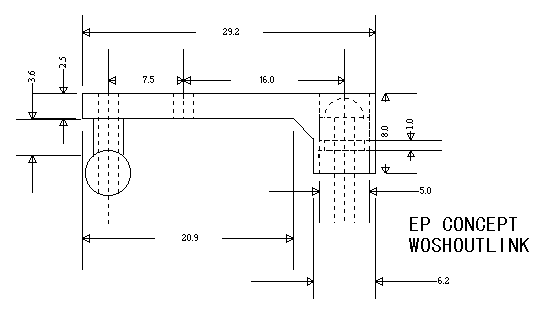

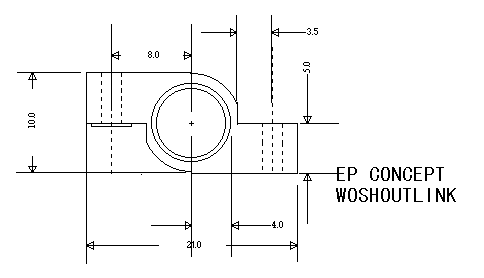

Parts drawings
WIndows95 GIF picture. Scale milimeter.
Each parts of hight is 6mm.
