Works Polar Bear


Mini EP Planes



F9F EDF40

EDFunit : GWS EDF40
Motor : Feigao 12mm 5800Kv
Battery FThunderpower 730mah 3cell GEN2
RX : Futaba R146ip 6ch PCM
Servo : Waypoint 034 *2 GWS PICO-STD*1
Scale : 1/20
Weight : 247g



My A-4 Skyhawk begin to good performance, so I think another EDF plane with GWS EDF40.
F9F kits are made by Aeronaut and RBC, but these are Midi-Fan class, too big for me. Single jet planes in 50's to 60's are bery beautiful for me, and I like F-16 too.
So I disided to make micro F9F.
I drawed plan with 1/20 scale, Intake and exthaust are too small , to modified to fit EDF40.



Works

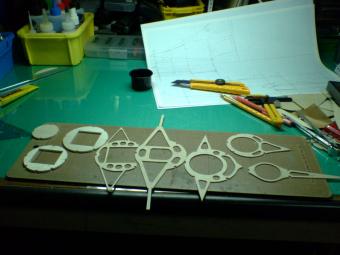

Main flames are 1mm plywood and 1.5mm balsa closs glain double.

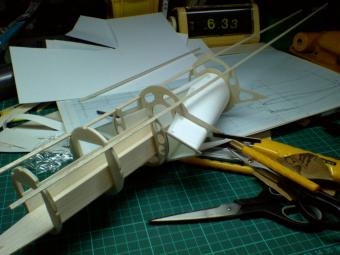

I use Ink-Jet paper ( for Paper claft) to intake guide.




Planked with 1mm*10mm balsa stlip with CA glue.


Sandling and sanding, Be careful.
































EDF mounted, lokks like RBC's F9F. Exthaust guide duct is OHP sheet.
EDF40 outer is inforsed with carbon sheet. Very important point.



Mayden flight

I use launch bed with bungee. Set tention in 1kg.
Elevator and airlon trims are near to center. Plan settings are good.
Flight speed is not so fast (Than my A-4) but bery stable, tight turn was no problem and tricky habit. Very controllable! Baerutiful siluette.
At slow speed flight, stall caracter was controllable, I feel 50's NAVY carryer ariplane.
CG point is 25% from L/E.
Stabilizer bolume is original, not change to large, piching stability was good.

Very happy!!

Flight VIDEO wmv 1.76MB
7/31 2005

I changed batterry connector from JST-BEC to 2mm bananna pin plug. Some of loss was decreased, so F9F get more power, enougf for loop and sprit-s and inverted. Air speed increased, like 4C52 crass scale GPplane.
